SKU: 150536

| Model: MEC06

Mini Compact Excavator Loncin 300cc 9hp Engine, 43.3" Max. Digging Depth, 0.6Ton, 1345 LBS Operating Weight, MEC06

Name: Mini Compact Excavator Loncin 300cc 9hp Engine, 43.3" Max. Digging Depth, 0.6Ton, 1345 LBS Operating Weight, MEC06
Brand: MechMaxx
SKU: 150536
Price: 4999.0 USD
Availability: InStock

Halloween Mega Sale | Ends in

Days : :

$499900

$5,499.00

Save $500

FREE SHIPPING

Details

Delivery in 10 - 15 Business Days

Details

Availability: In Stock

Payment:

Lifetime Technical Support

Get expert troubleshooting and operational assistance via phone or email for the life of your equipment.

Warranty Coverage

Backed by our dependable equipment warranty for long-term protection.

Official Website Lowest Price Guarantee

Shop directly from our official website with confidence. If you find an identical product currently listed at a lower price on another website, we'll refund the difference.

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

MEC06 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
Powered by Loncin G300FDA 300cc 9hp Engine, high compression ratio for better fuel efficiency.
Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
43.3-inch digging depth reach capability and a 82.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
Can rotate 360 degrees.

Product manual (PDF)

MEC06 Product manual 1.0.pdf

Product Features

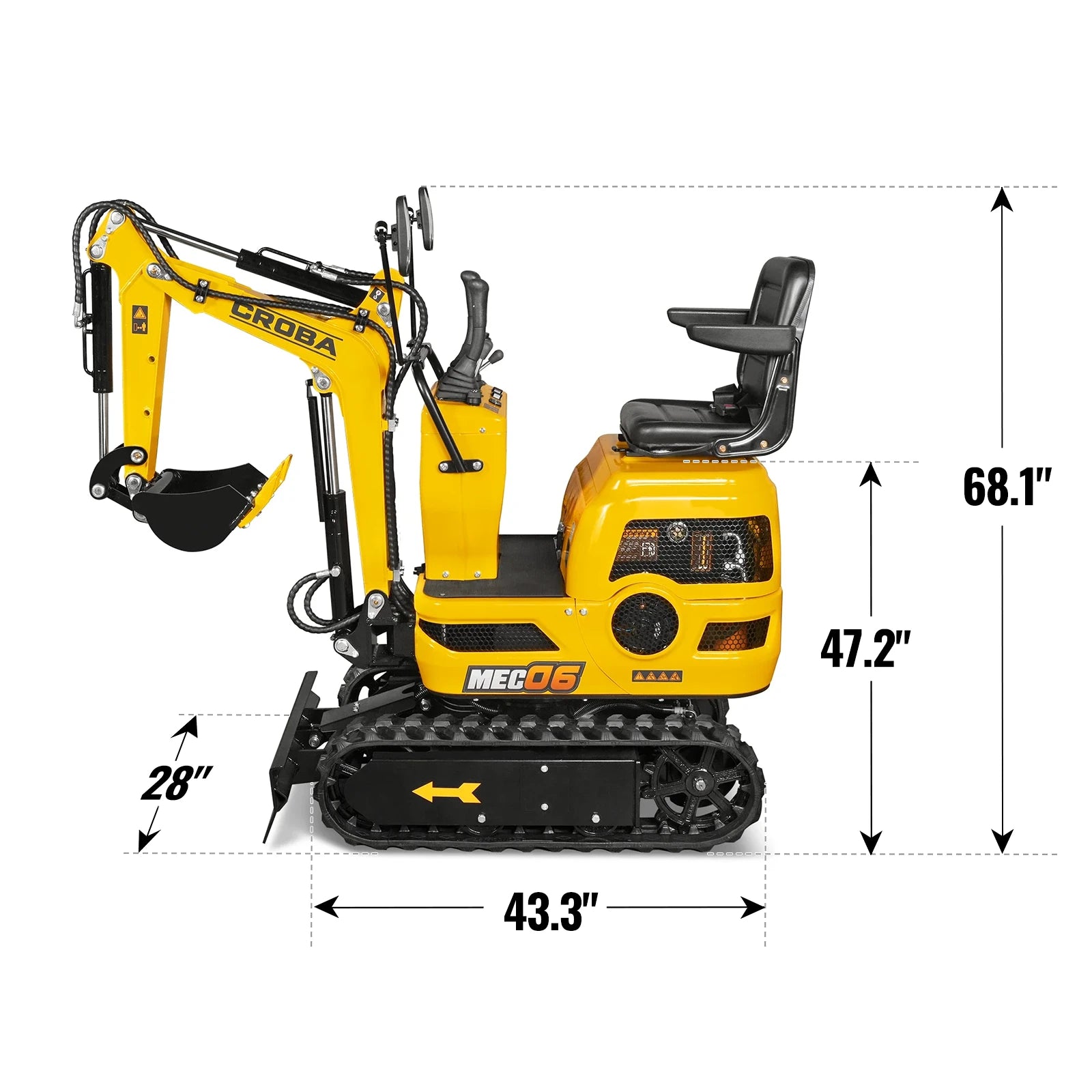

Chassis Width

At 28 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.

Swing Arc

The digging arm can swing left and right, turn 55 degrees to the left and 65 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.

Digging Depth

It features an all-around 43.3-inch digging depth reach capability and a 82.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

Digging Performance

Generating an impressive 1,911 lbf of bucket digging force, this excavator easily tackles tough soil and demanding excavation tasks, maximizing productivity and job site efficiency.

360° Full-Rotation Capability

The excavator features a 360-degree rotating platform, allowing operators to work efficiently in any direction without repositioning the machine.

Hydraulic Safety Locks

Hydraulic locks on both the boom and dozer blade prevent unintended movement or lowering, providing enhanced safety and peace of mind during operation.

Video

Product Warranty

Specifications

Operating Weight	1345 lb	Hydraulic Oil Tank Capacity	2.64 gal
Standard Bucket Capacity	0.53 ft³	Auxiliary Std Flow	4.76 gal/min
Standard Bucket Width	11.4 in	Max. Tractive Force	742 lbf
Max. Travel Speed	1.12 mile/h	Arm Digging Force	1012 lbf
Slewing Speed	9.5 RPM	Bucket Digging Force	1911 lbf
Max. Gradeability	15°	Rated Lift Capacity	330 lb
Track Ground Pressure	3.84 psi	Lift Radius	78.7 in
Operating Range
Max.Digging Radius On Ground	82.7 in	Max. Vertical Digging Depth	45.3 in
Max. Digging Depth	43.3 in	Min. Turning Radius	47.2 in
Overall Operating Height (Fully Raised)	79.9 in	Max. Lifting Height Dozer Blade	5.5 in
Max. Digging Radius	90.6 in	Max. Depth Dozer Blade	5.5 in
Max. Unloading Height	67.3 in
Main Dimensions
Wheel Track	31.5 in	Track Height	12.6 in
Track Length	43.3 in	Transportation Length	83.4 in
Upper Chassis Ground Clearance	4.5 in	Height Of Seat To Ground	47.2 in
Counterweight Turning Radius	23.6 in	Overall Height	68.1 in
Chassis Width	28 in	Boom Swing-Right	65°
Track Width	5.9 in	Boom Swing-Left	55°
Engine
Model	Loncin G300FDA	Max. Net Torque	20.3 N.m/2500 RPM
Displacement	300 cc; 9 HP	Fuel Tank Capacity	1.45 gal
Engine Type	4-stroke, overhead valve, single cylinder	Engine Oil Capacity	0.25 gal
Start Type	Electric start	Engine Oil Type	10W-30
Rated Power	6.8 KW/3600 RPM
Service
Package Method	Steel Frame Packaging	Package Size	89x29x49 in
Warranty for Machine/Engine	1 Year	Weight (N.W./G.W.)	1345/1510 lb

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
